Industrial Prytec fibre lasers for fast, accurate sheet-metal cutting, in three bed sizes from 2 kW to 30 kW.

Sign to Badge Solutions supplies the Prytec PLS fibre laser cutting range: industrial, fully enclosed machines for fast, accurate cutting of sheet metal. The range has three bed sizes. The compact PLS-F1390 (1300 × 900 mm) suits schools, TAFEs, labs and smaller workshops. The PLS-F1515 (1500 × 1500 mm) is a versatile all-rounder for fabrication shops and growing manufacturers. The full-sheet PLS-F3015 (3000 × 1500 mm) is built for high-volume production. The range runs from 2 kW up to 30 kW of laser power, so you can match the machine to your floor space, materials and output. That covers mild steel, stainless steel, aluminium, brass and copper. Prytec designs and engineers its machines in Australia, and they are supported locally.

Request a Quote Call +61 7 3412 0285

Key Benefits

• Three bed sizes, one platform: compact 1300 × 900 mm, square 1500 × 1500 mm, or full-sheet 3000 × 1500 mm.
• Scalable laser power: 2 kW on the F1390, 2 kW up to 6 kW on the F1515, and 2 kW to 30 kW on the F3015.
• Cuts a wide range of metals: mild/carbon steel, stainless steel, aluminium, brass and copper. Edges are clean and repeatable.
• Built safe: fully enclosed machines with safety-interlocked doors. The F1390 also has an internal viewing camera and a pneumatic front door.
• Industrial precision: ±0.03 mm repeatability, ±0.05 mm location precision, 1.5G X/Y acceleration and a 140 m/min rapid speed.
• Flexible assist gas: the F1390 lets you select oxygen, nitrogen or compressed air in software. The F3015 has an automatic gas assist system.
• Productive material handling: the F1390 has an offcut trolley, the F1515 a drawer-type (pull-out) table and the F3015 an exchange table.
• Ready to work: an integrated PC with software. The F1515 includes nesting, and the F1390 runs networkable Windows 11.
• Australian engineering and local support, plus fully customised systems when a standard machine isn’t the right fit.

The Range

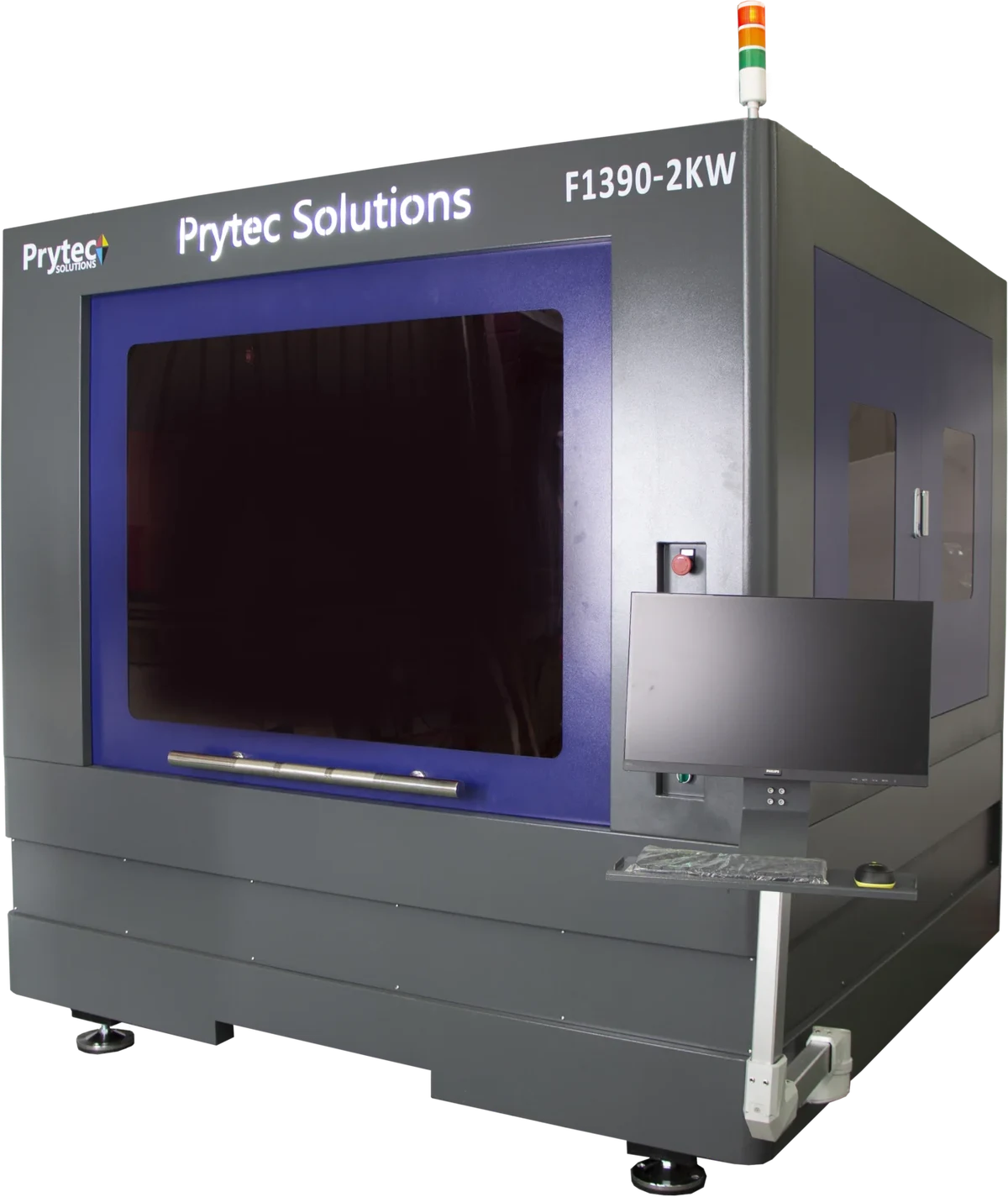

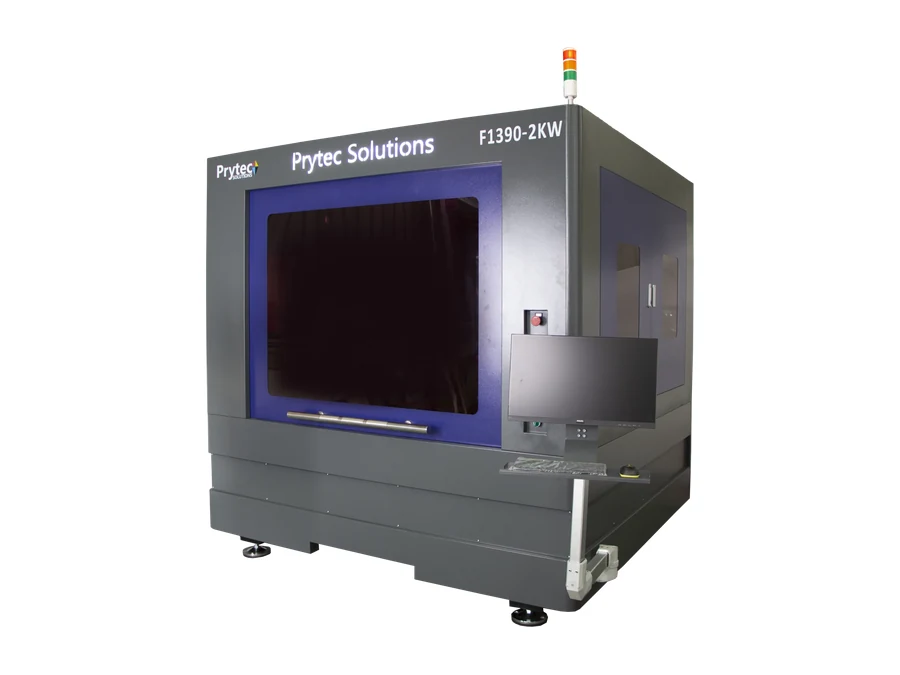

PLS-F1390

Compact 2 kW fibre laser cutter · 1300 × 900 mm

Industrial-grade metal cutting in a small footprint for education labs, R&D and real workshop production. It has a pneumatic front door, full safety interlocks, an internal viewing camera and an auto-focus cutting head with capacitive height sensing. Motion is industrial EtherCAT with a helical rack drive. Oxygen, nitrogen and compressed air are selectable in software, and it runs on a networkable Windows 11 PC. Because it can cut with compressed air, you don’t need high-pressure gas cylinders.

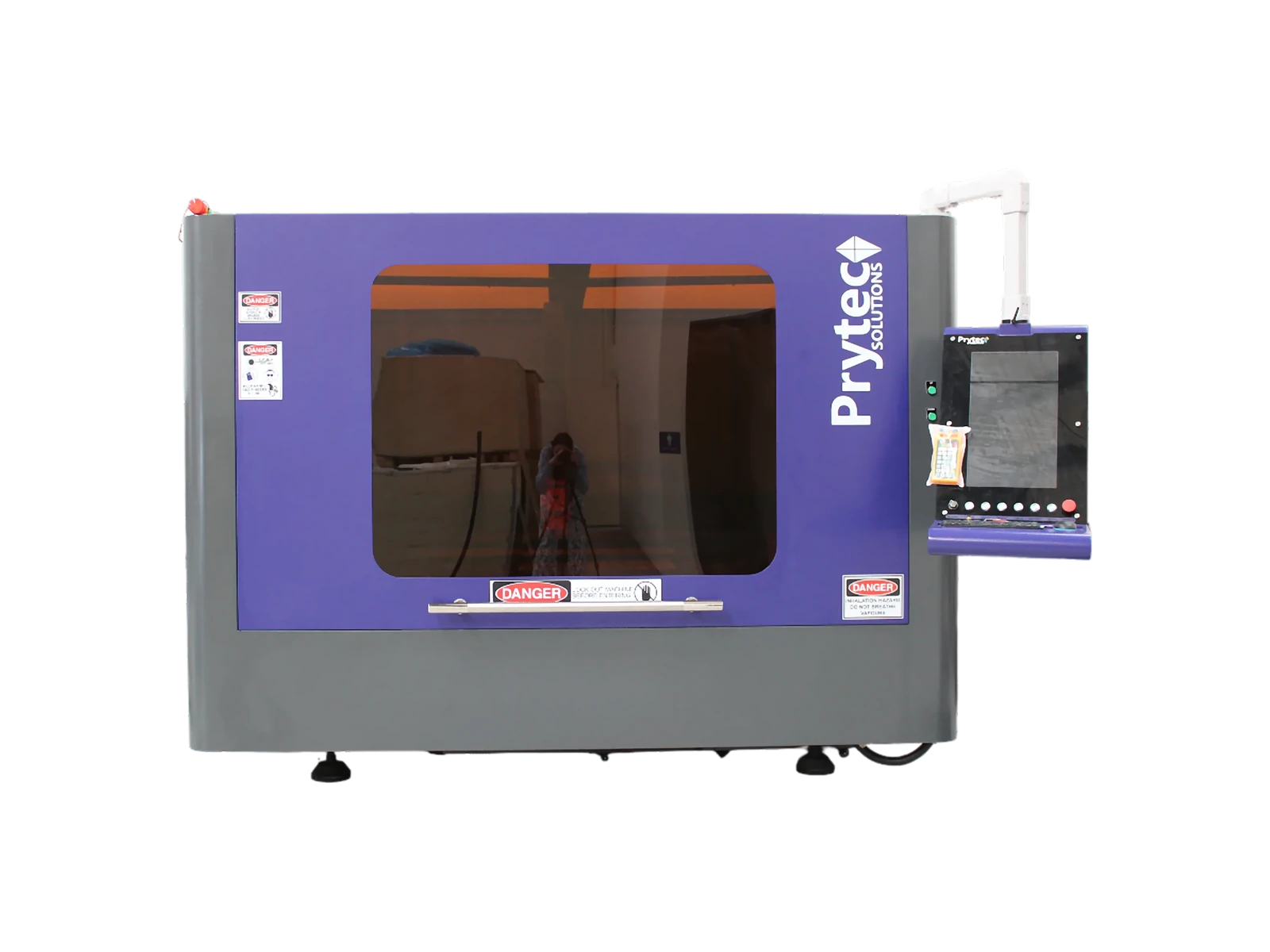

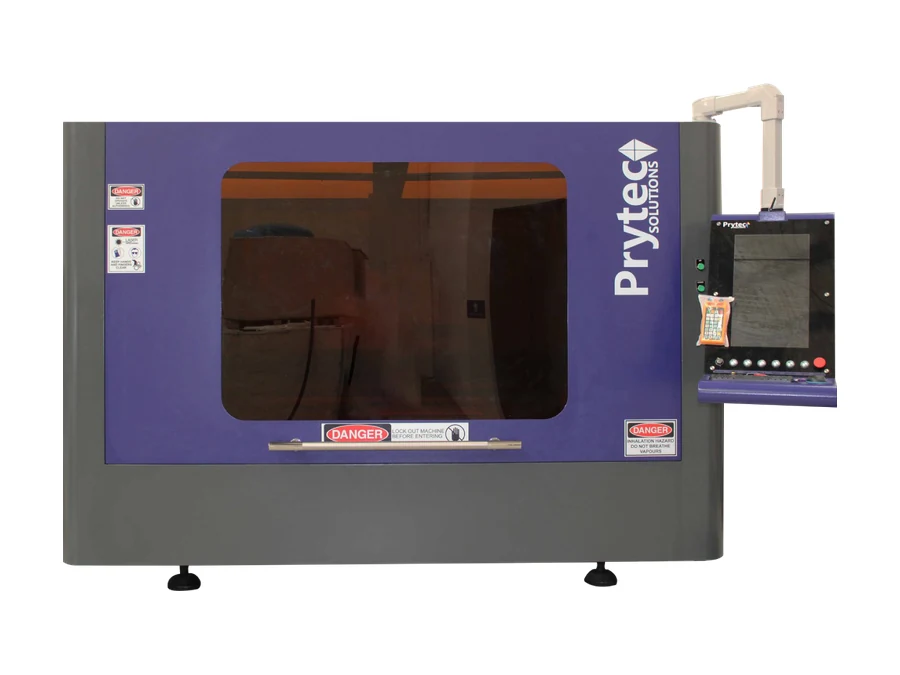

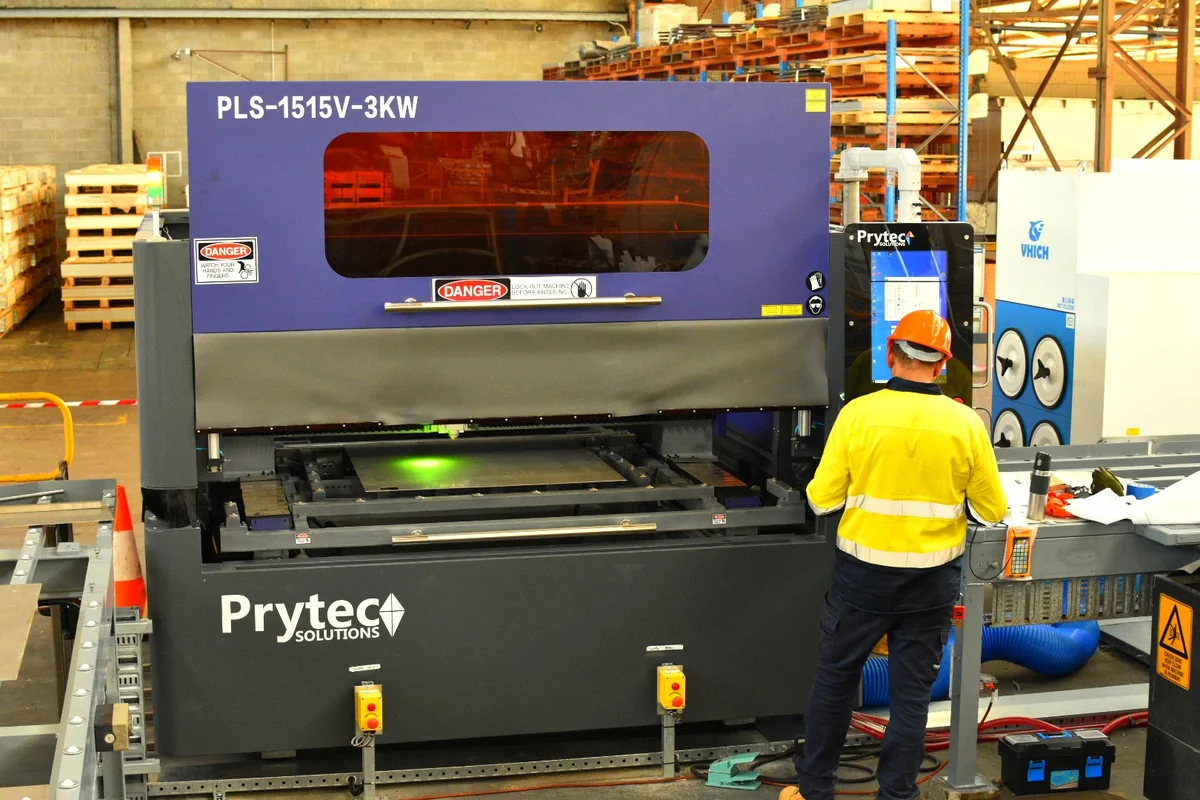

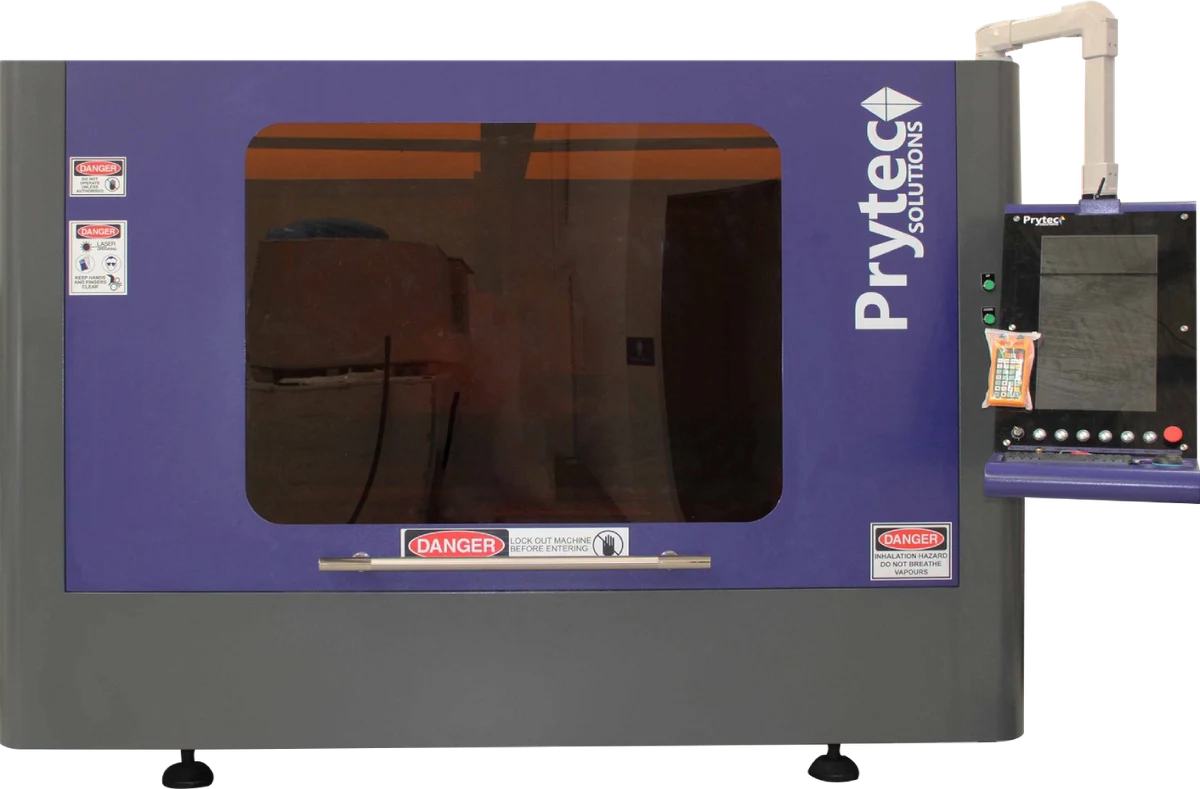

PLS-F1515

2–6 kW fibre laser cutter · 1500 × 1500 mm

Fast, accurate and cost-efficient cutting for sheet-metal fabrication, production work, custom metalwork, prototyping and general engineering workshops. It comes standard with a 2 kW source, with sources up to 6 kW optional. A drawer-type working table, an integrated PC with software and nesting are included. It uses the same running gear and technology as the F3015 in a smaller footprint. A full parametric vision system is optional.

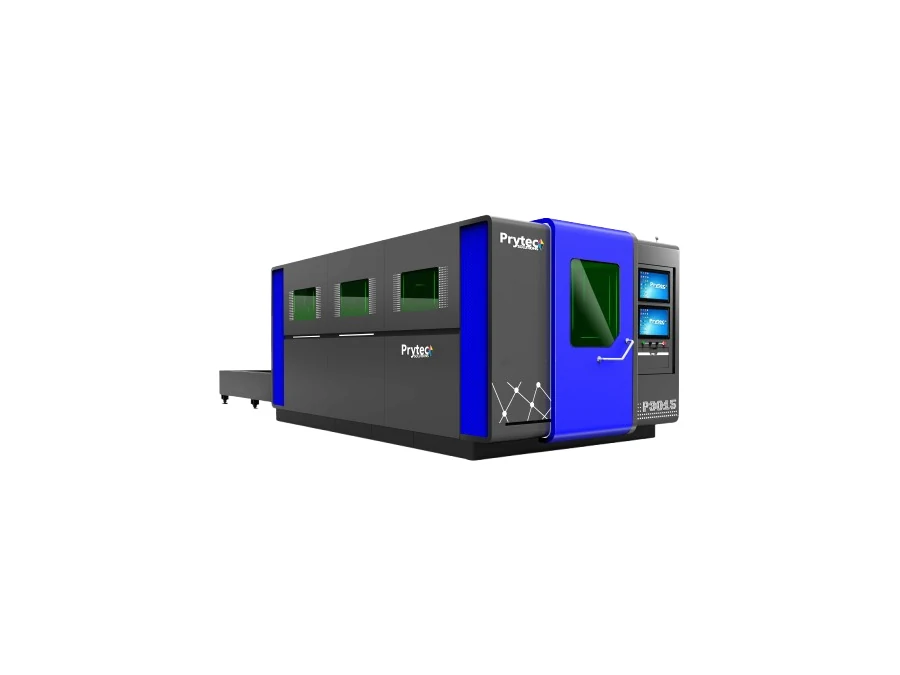

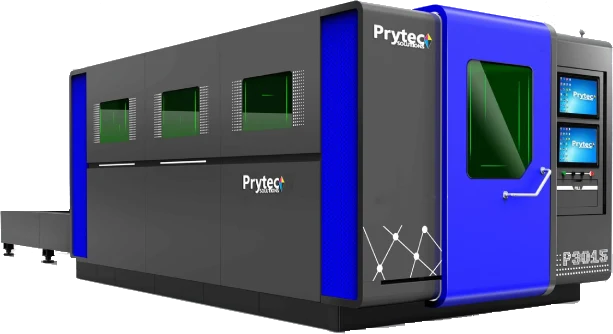

PLS-F3015

2–30 kW full-sheet fibre laser cutter · 3000 × 1500 mm

Prytec’s production machine for professional-grade metal fabrication. The exchange table keeps downtime between sheets to a minimum. It has a protective cover with a lifting door and safety interlocks, an automatic gas assist system and rack and pinion drive with a high-precision gearbox. Control is a European dual-processor CNC. It also has autofocus, automatic collision detection and zoned top and bottom exhaust extraction.

Compare the PLS Fibre Range

*Cutting thicknesses are typical or maximum figures from Prytec. The exact thickness you can achieve depends on material grade, laser lens, assist gas setup and cut speed.

Cutting Capacity

PLS-F1390 (2 kW), by assist gas

PLS-F1515 (2–6 kW) & PLS-F3015 (2–30 kW): maximum thickness by laser power

*8 kW and above: PLS-F3015 only.

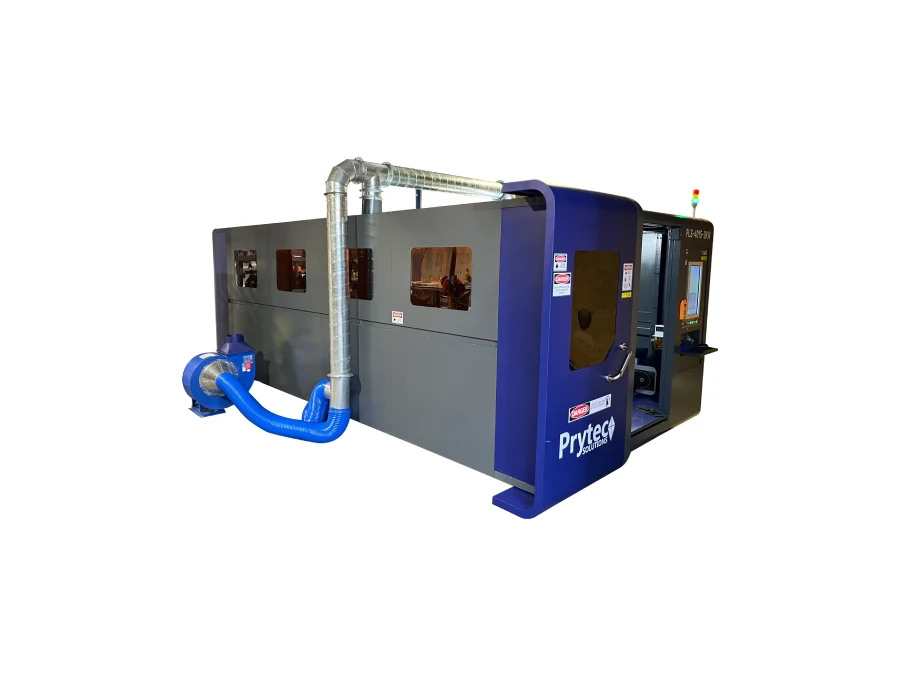

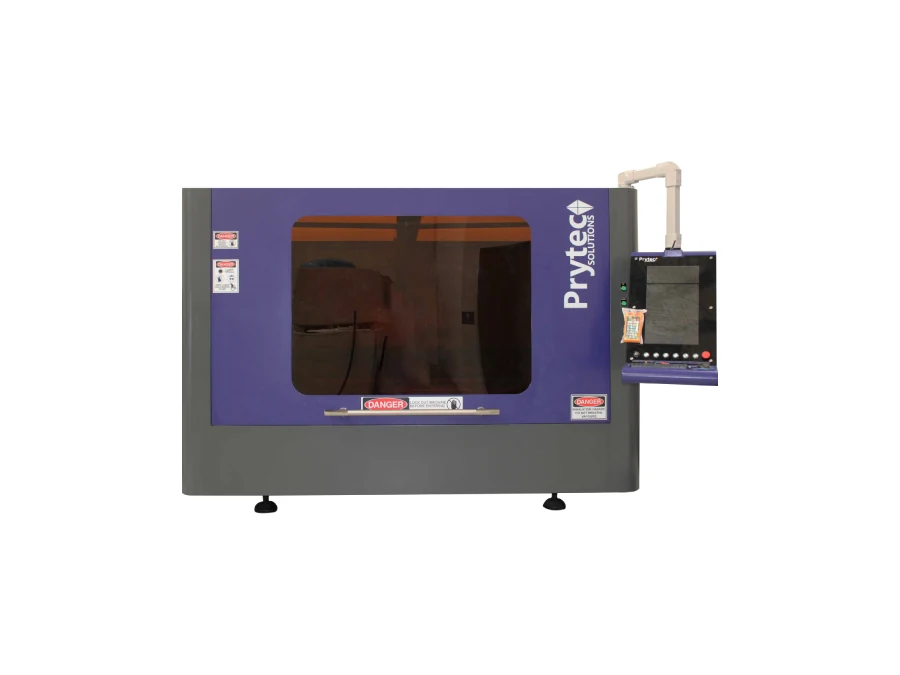

Customised Fibre Laser Systems

Every application is different, and your laser system should be too. Prytec designs and configures purpose-built laser systems for real production environments in industrial manufacturing, defence and utilities, electrical identification, and research and development. They can change the power range, the work area, the automation or add unique features, so the machine is set up around how you actually work from day one.

• Production-ready customisation: configure power, bed size, enclosure, extraction and safety to suit your environment and compliance needs.
• Automation & integration: jigs, fixtures, part location and workflow integration give repeatable results and faster throughput.
• R&D and specialised projects: build platforms for prototyping, trials and process development, then scale into production when you’re ready.
• Throughput optimisation: motion tuning, shorter cycle times and better repeatability.
• Integration ready: designed for production lines or standalone work cells.
• Scalable platforms: go from prototype to pilot to production without starting over.

Common customisations

• Work area & material handling (beds, pass-throughs, fixtures)
• Power & source selection (matched to material and duty cycle)
• Automation & workflow integration (jigs, alignment, repeatability)
• Safety, extraction & compliance (enclosures, interlocks, fume control)
• Software workflow (your files, your process, your operators)

Built in Australia. Supported locally.
