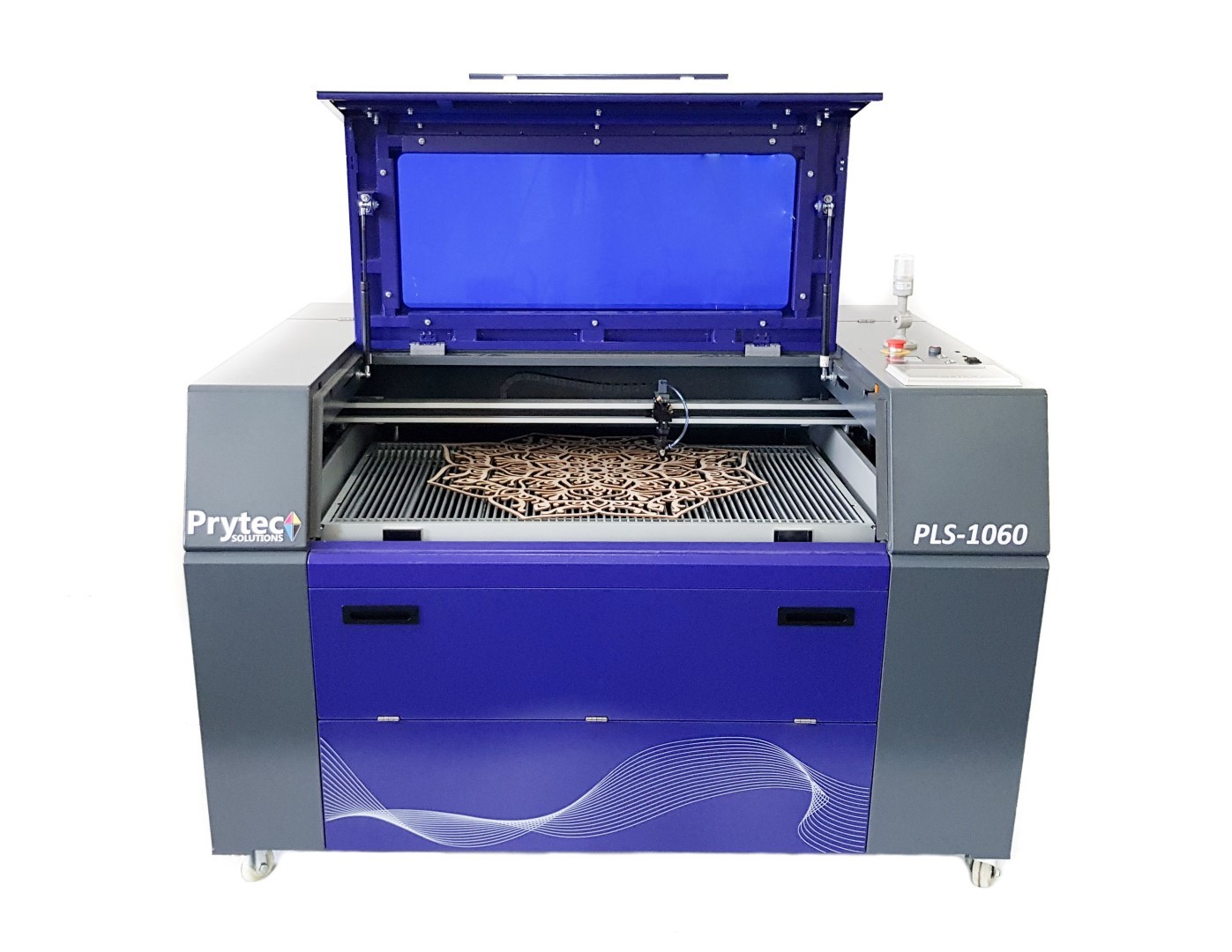

PLS-1060-100W Laser System

Expand your business by adding versatility and personalisation to your product.

Prytec Laser Systems are designed to cut and etch all sorts of materials including acrylics with ease, leaving you a beautiful polished finished edge, it will also etch text and graphics in high detail. The 1,000 mm x 600 mm working area is ideal for small to medium engraving and cutting jobs. Our 100W Laser Tube has a 6000+ hour life span and is easy and cost effective to replace. No re-gassing and no hefty costs in replacement tubes.



Easy to Use

The PLS Laser System has been developed with keeping ease of use in mind. Plugged in via USB cable the unit has a basic controller on the machine to move the machine to the location required (if working with an off-cut). All our PLS Laser systems have an auto-focus feature, ensuring that you are at the right height all the time. The automated air assist automatically opens and closes the air valve so you do not have to flick a switch.



Materials

The Prytec Laser Systems can handle a wide variety of materials. You can Engrave onto acrylic, anodised aluminum, metals*, wood, leather, paper, fabric and more. You can also cut materials like Acrylic, fabric, leather, stamp material, timber etc. The effects and creations are up to your imagination.

* A marking spray must be used to mark bare metals with a CO2 laser.

Enquire Download Brochure
External dimensions 1,650 mm W x 1,180 mm D x 1,040 mm H
Laser source 100W CO2 Laser Tube, Water-Cooled
Max Engrave Speed 1,000 mm/sec
Location Precision less than 0.01 mm
Scanning Precision up to 1000 dpi
Minimum Character Size 1.0 mm x 1.0 mm
Motors Brushless DC motors
Graphic File Types HPGL, PLT, BMP, DXF, AI and more...
Slope Engraving - For Rubber Stamps Yes
Warranty 2 years (excluding consumables)









All Prytec Laser Systems come with EngraveLAB software specifically designed and created for Prytec Laser Systems developed by CADLink.

EngraveLAB V10 Ruida Edition

Bundled with CADLinks EngraveLAB Ruida Edition software facilitates the production of a wide variety of jobs, from simple nameplates to elegant wood signs and luxury stationary. EngraveLAB Ruida Edition generates quality results with photos Bitmaps and Vector Art Work. The software imports designs in AI, EPS, PDF, DXF, BMP, JPG file formats. It also allows users to design and modify files to suit.
