Demak Automatic Doming Machines

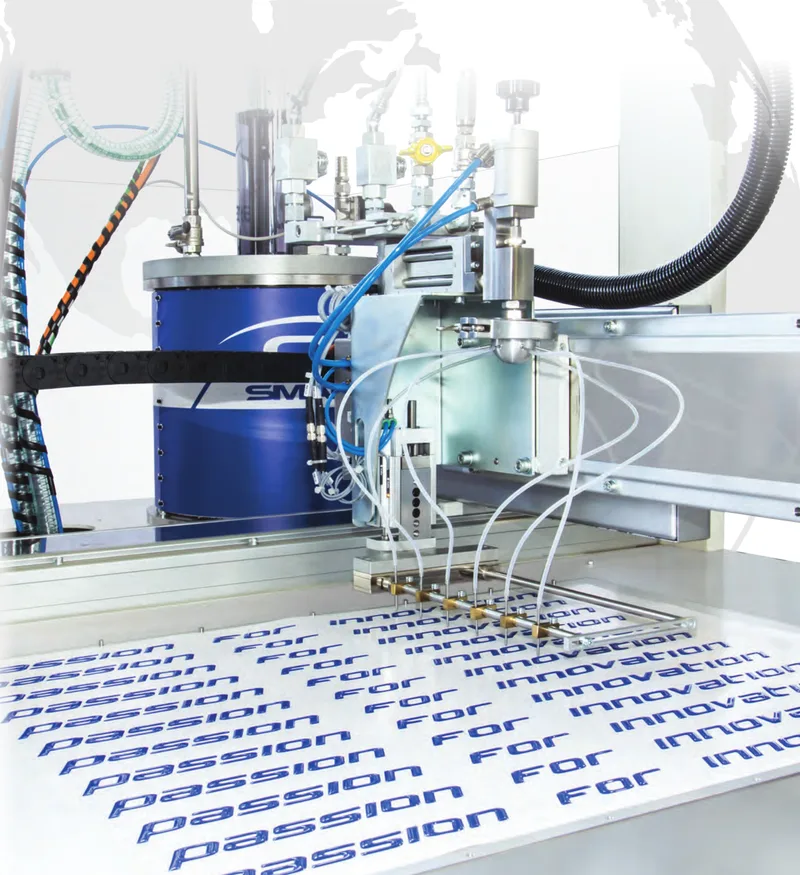

When doming becomes a production line, Demak is the name to know. The Turin-based company has specialised in resin dispensing and doming since the early 1980s. Its machines load two-part resin straight from the original drums, degas it continuously under vacuum and meter it with motorised precision pumps, so every dome is bubble-free and consistent.
Shared Demak technology
1Patented continuous degassing
Continuous vacuum degassing pumps deliver moisture-free, bubble-free resin.
2Loads from the original drums
Automatic loading straight from the resin drums, with no decanting.
3Variable ratio, precise pumps
Variable resin/hardener ratio with high-accuracy independent motorised pumps for repeatable dosing.
4Sheets kept flat
A vacuum platen (PM series) or new-concept platen (DP2) holds label sheets perfectly flat.
5Demakgraph software
PM models run from a PC with Demakgraph software, plus remote assistance.
6Built for any application
From compact units to robotic benches up to 10 m and lines that dispense and cure in one cycle.
DP compact doming machines

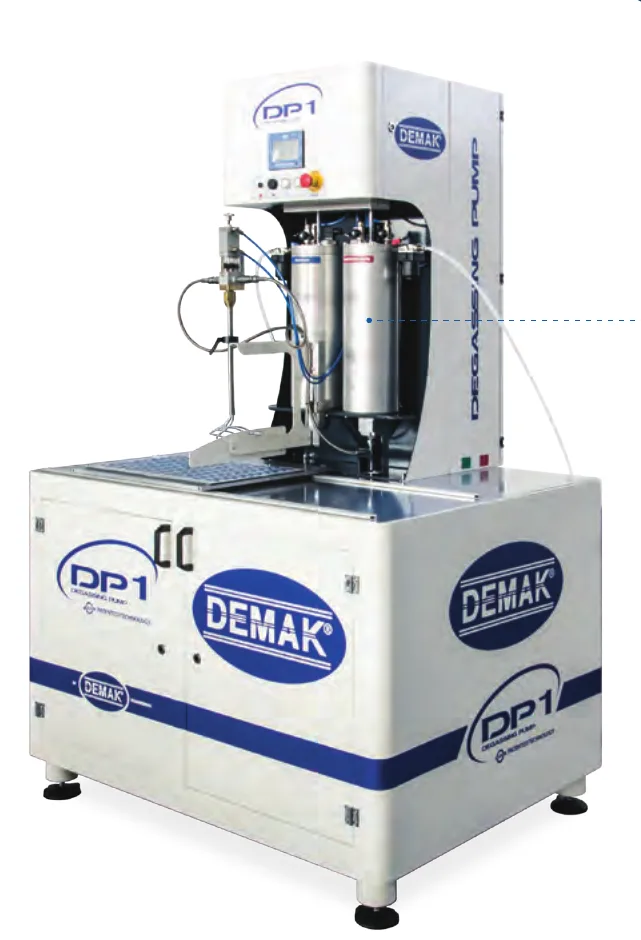

DP1
The compact entry point to Demak’s patented degassing technology, giving bubble-free, moisture-free resin with accurate, repeatable dosing in a small footprint.
- Patented continuous degassing system
- Automatic loading from original drums
- Accurate, repeatable dosing

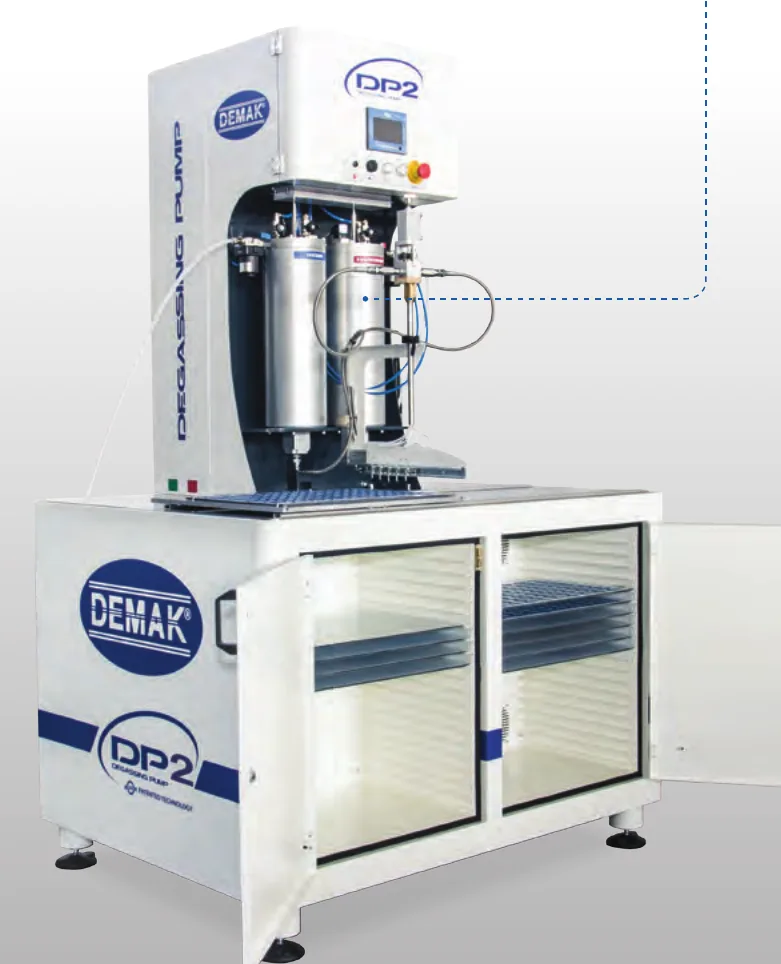

DP2
A compact machine with all the main functions on board, including a built-in curing oven.
- Demak continuous degassing system
- Automatic loading from original drums
- Automatic dosing via X-axis movement
- New-concept platen to keep sheets flat
- Curing oven
PM CV SMART dispensing robots
Every PM model includes continuous degassing, a variable ratio, motorised pumps, drum loading, a vacuum platen, Demakgraph software and remote assistance.

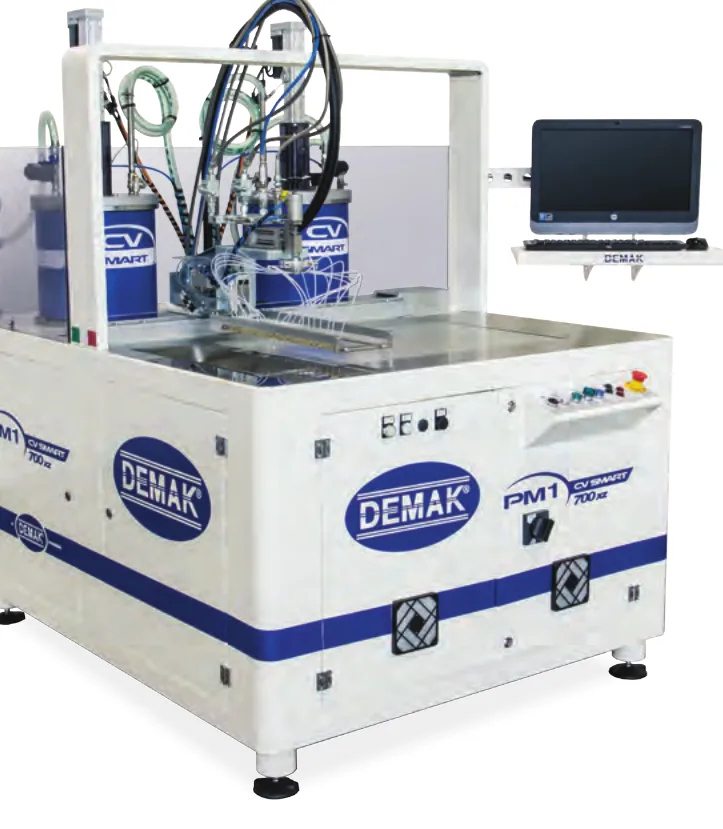

PM1 CV SMART 700 xz
Demak’s next-generation CV SMART doming machine with automatic XZ axes and Demakgraph software control.
Automatic XZ axes · 700 × 500 mm (27.6 × 19.7 in)
Request a Quote - PM1 CV SMART 700 xz

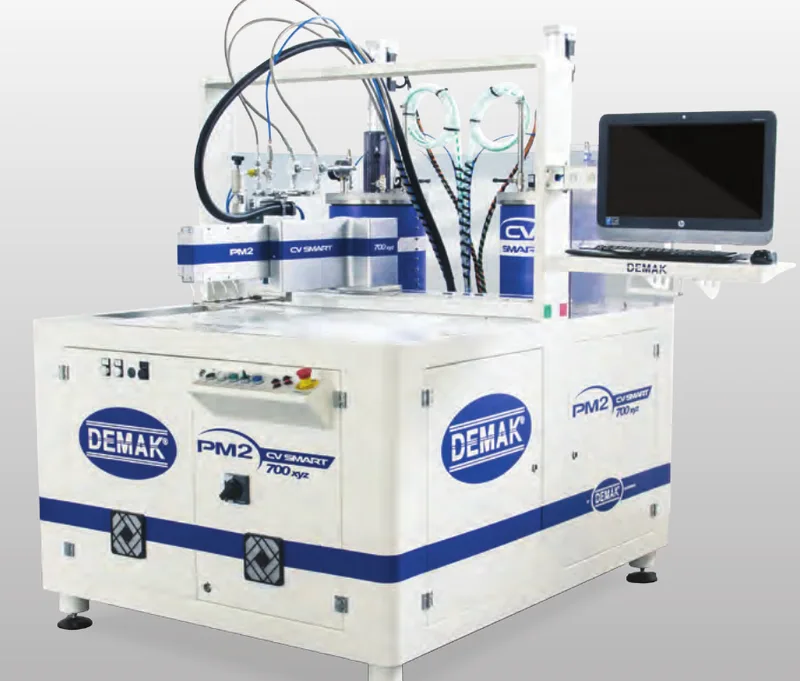

PM2 CV SMART 700 xyz
A full XYZ robot for dosing resin accurately on complex shapes.
Automatic XYZ axes · 700 × 500 mm (27.6 × 19.7 in)
Request a Quote - PM2 CV SMART 700 xyz
PM3 CV SMART 1400 xyz
A high-performance XYZ machine for medium to large formats. Move from small labels to large work without changing machines.
Automatic XYZ axes · 1400 × 500 mm (55.1 × 19.7 in)
Request a Quote - PM3 CV SMART 1400 xyz

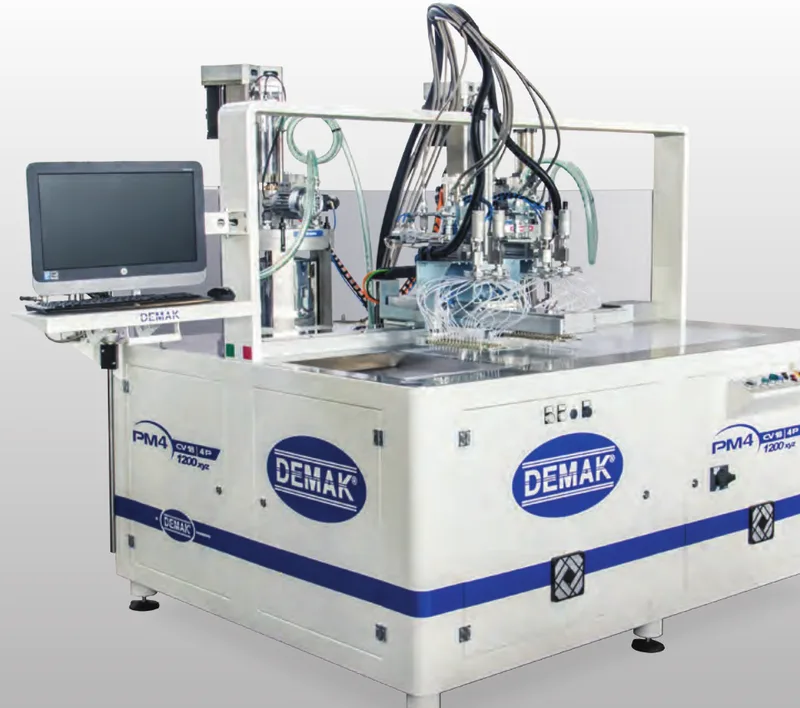

PM4 CV 18 4P 1200 xyz
Built for maximum output. Up to four motorised pumps per tank and a double dispensing head on each pump set dome up to 80 labels at once.
Automatic XYZ axes · 1200 × 500 mm (47.2 × 19.7 in)
Request a Quote - PM4 CV 18 4P 1200 xyz| Model | Axes | Working area | Pumps |
|---|---|---|---|
| PM1 CV SMART 700 xz | XZ | 700 × 500 mm | Independent motorised pumps |
| PM2 CV SMART 700 xyz | XYZ | 700 × 500 mm | Independent motorised pumps |
| PM3 CV SMART 1400 xyz | XYZ | 1400 × 500 mm | Independent motorised pumps |
| PM4 CV 18 4P 1200 xyz | XYZ | 1200 × 500 mm | Up to 4 per tank, double head per pump set |
Specifications from the Demak DP – PM CV SMART Series brochure. Demak’s current model names may differ slightly (for example CV 2 SMART and PM2/PM3 CV2 SMART). Ask us for the latest specifications.
Special systems & production lines

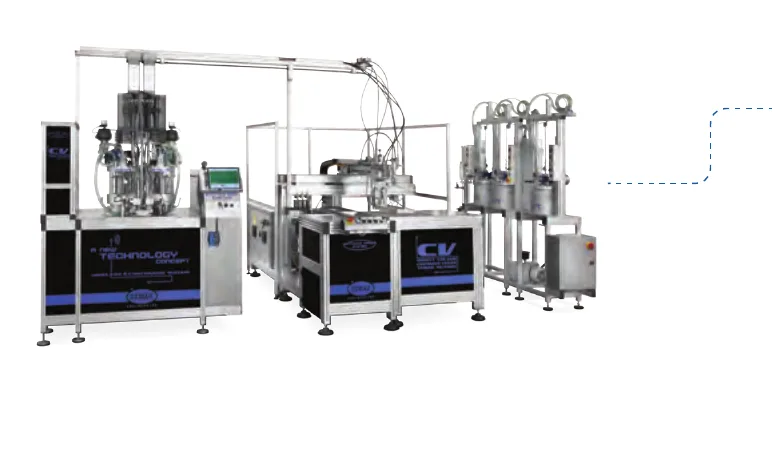

Color System
Designed to apply two-part resins combined with additives and inks for coloured, thermochromic, phosphorescent and fragrance labels and more.
Request a Quote - Color System
Thin Film
Exclusive Demak technology that dispenses a thin 50-micron resin layer on aluminium plates, in high demand in the automotive market.
Request a Quote - Thin Film

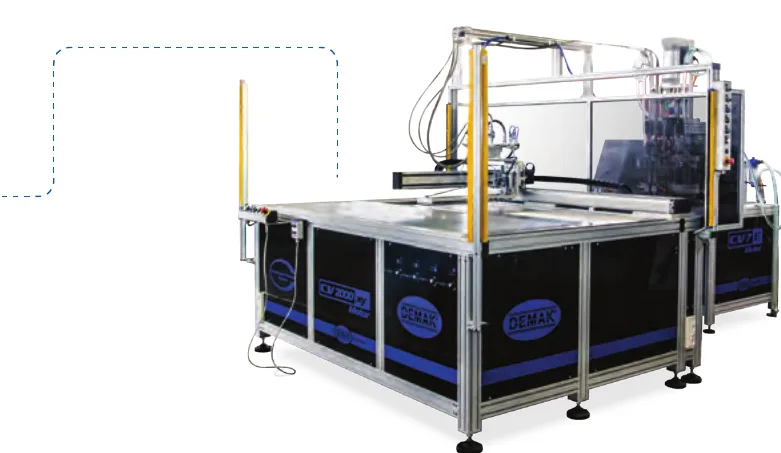

Large Formats
Standard robotic benches from 2 m (6.5 ft) to 10 m (33 ft), so size is no longer a limit.
Request a Quote - Large Formats

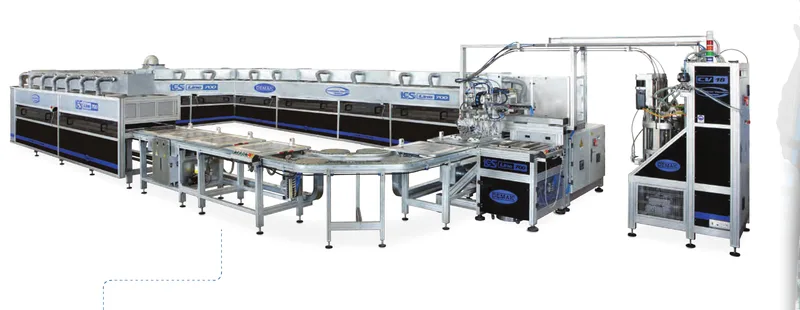

Automatic Lines
Engineered for maximum efficiency. They dispense and cure in the same cycle while keeping label sheets perfectly flat, for high output with no rejects.
Request a Quote - Automatic Lines

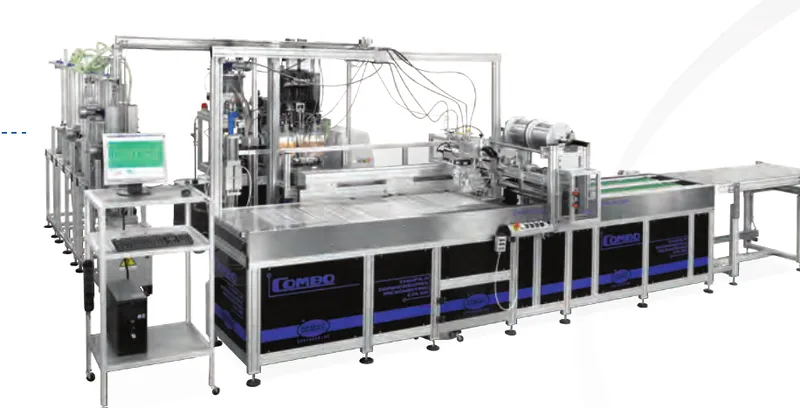

Combo
All Demak technologies (Colour, Micro, Thin Film and Kromex®) in one machine, to get the most from your investment.
Request a Quote - ComboProduction doming with Demak
Demak machines are built for volume and consistency, whether you produce domed labels by the thousand or specialised automotive emblems.
- High-volume domed labels
- Stickers & nameplates
- Automotive emblems
- Thin-film aluminium plates
- Chrome-look Kromex® emblems
- Thermochromic & glow labels
- Fragrance labels
- Large-format domed graphics
Planning to scale up your doming? Tell us your volumes and label sizes and we’ll recommend the right Demak machine.
